Manufacturer of guide rail chain elevator

Category:Guide rail lift cargo elevator

Product specifications:

Details

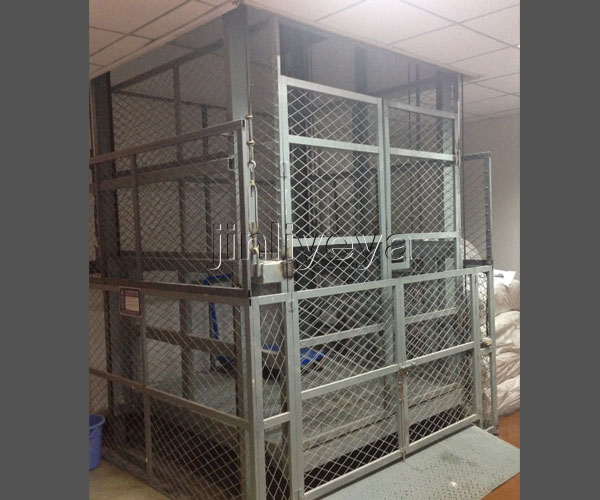

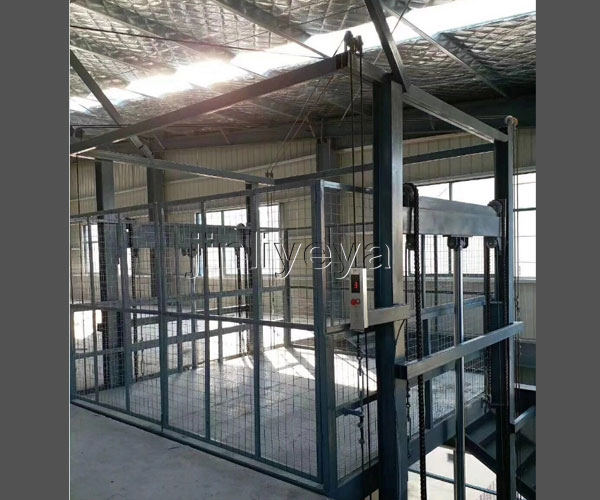

*The guide rail chain elevator is mainly used for transporting goods up and down between various working floors, and is more suitable for workplaces that cannot excavate pits and have narrow spaces. It can be customized as a delivery platform with various forms (single column, double column, four column).
*Using single-sided or double-sided oil cylinders, the oil cylinder extends and retracts to drive the chain to drag the worktable up and down.
*The hydraulic system of the product is equipped with anti fall measures and interactive interlocking between the upper and lower doors. Operation buttons can be set on each floor and lifting platform to achieve multi-point control.
*Power outage can achieve manual descent, equipped with an emergency stop button, which is convenient, fast, and practical.
*There is no computer room at the top, no counterweight, small space occupation, and low requirements for civil engineering conditions.
*The equipment runs smoothly, has a large load capacity, is easy to operate and reliable, has a sturdy structure, is easy to install and maintain, and has a long service life. It is an ideal freight conveying equipment for economically applicable floor to floor lifting operations.
*According to the installation environment and usage requirements of the cargo elevator, different optional configurations can be selected to achieve better usage effects. This product is widely used in various factories, warehouses, chemical plants, power plants, automobile 4S stores, automobile repair shops, explosives and other explosion-proof enterprises.



Note: Can be designed and manufactured according to user requirements

Applicable locations:Logistics and freight, various factories, warehouses, chemical plants, power plants, automobile 4S stores, automobile repair shops, explosives and other explosion-proof enterprises.

usage method:
1. After installation and commissioning, all technical indicators of the hydraulic lifting cargo elevator meet the design requirements. The hydraulic and electrical systems do not need to be adjusted during use, and the operation should be carried out in detail according to the instructions.
2. Before use, the cargo elevator must be carefully inspected for any leakage or exposure in the hydraulic and electrical systems.
3. The load should be placed in the center position of the workbench as much as possible.
4. The movable door on the protective railing should be tightly closed before it can be raised or lowered.
5. Regularly check the use of guide rails and chains, and apply butter for maintenance and upkeep.
6. Hydraulic control system
Working process: First, start the motor start switch, the motor rotates, the gear pump pumps oil, the oil cylinder extends, and the platform lifts; When reaching the required working height, press the motor stop button to stop the platform from lifting, and then you can start working. When descending, press the electromagnet on button. At this time, the oil cylinder returns oil and the platform descends by its own weight. After reaching the original position, turn off the electromagnet (power off).
matters needing attention:
1. When using the freight elevator, no one is allowed to stand below the workbench.
2. Before lifting a cargo elevator with an outer manual protective door, the outer door must be closed first.
3. During the lifting process of the freight elevator, it is strictly prohibited for personnel to climb. If maintenance is required, the workbench (or car) must be firmly pushed up after the freight elevator is lifted before proceeding.
4. Overloading is strictly prohibited during the use of the cargo elevator. The items carried should be safely placed on the workbench and should not be exposed outside the platform.
5. The hydraulic oil used should be kept clean and free from water and other impurities. It is generally replaced every six months. N32 hydraulic oil is generally used in winter; Use N46 in summer.
6. When the freight elevator malfunctions, the power supply should be cut off in a timely manner for maintenance.

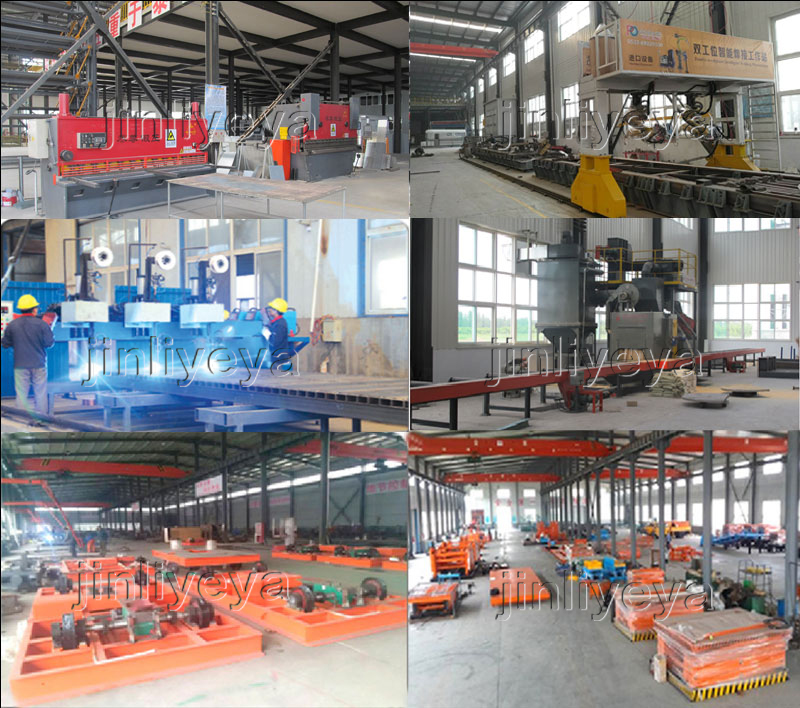

Our factory is spacious and bright, with excellent production equipment and imported production line equipment,Our leading products include over ten series, including high-altitude work platforms, hydraulic lifts, lifting platforms, boarding bridges, electric flatbed trucks, hedge trimmers, railway bridges, and car lifts. Jinli adopts a flexible production system to meet customers' special requirements for the design and production of lifting platforms. In the design and production departments of Jinli, we are able to quickly provide solutions for a series of special requirements raised by customers. Our products have been successfully applied in many industries such as aerospace, aviation, nuclear power, logistics, pharmaceuticals, railways, chemicals, and automobiles.
